The 4000AE Drop Deck has a 71,000 lb evenly distributed payload capacity, weighs less than some all-aluminum trailers, and is available at a combo-trailer price. Using the same patent-pending crossmember system as the 4000AE combo flatbed, the 4000AE Drop Deck consists of a combination of 3" and 4" aluminum crossmembers.

Aluminum crossmembers
Aluminum crossmembers
Drop Deck solutions
Drop Deck solutions
4000A<em>E</em> Drop Deck

Standard Features

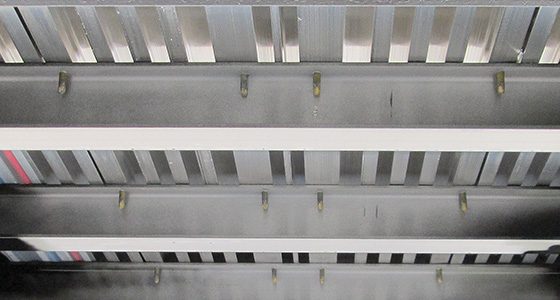

Aluminum crossmembers
Aluminum crossmembers

3" aluminum I-Beam crossmembers on 12" centerlines, full length in areas where needed, optimizing weight without compromising strength.

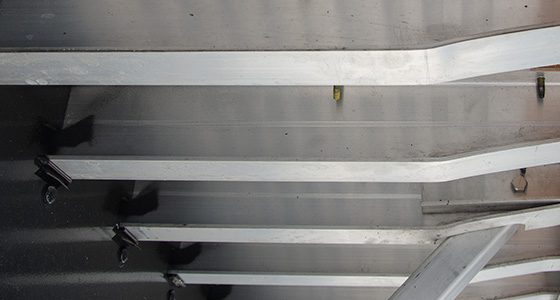

39,000 lb standard coil haul package
39,000 lb standard coil haul package

39,000 lb coil haul package with a 5 foot span of 4" tapered to 3" aluminum crossmembers on 8" centerlines.

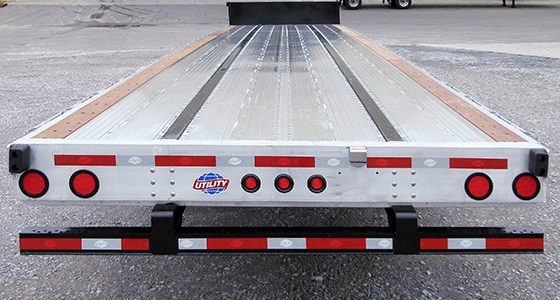

Light weight
Light weight

The 4000AE Drop Deck weighs 541 lb less than a standard Utility Drop Deck and 660 lb less when a 39,000 lb coil haul package is added.
Heavy-duty pipe spool
Heavy-duty pipe spool

The aluminum side rail with heavy-duty pipe spools and integral winch track is engineered to a 6,500 lb working load limit.

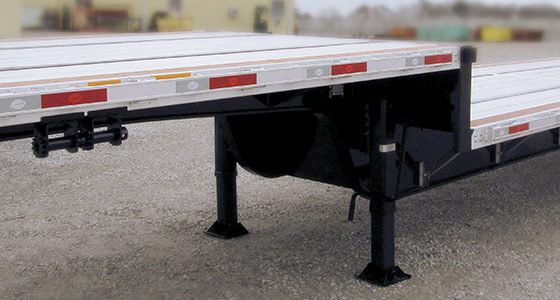

Drop Deck solutions for heavy and awkward loads
Drop Deck solutions for heavy and awkward loads

Available in all-steel or aluminum/steel combo designs, our Drop Deck trailers deliver options to deliver superior strength.
Hat-shaped top flange
Hat-shaped top flange

The 80K steel hat-shaped top flange provides added lateral stability adding to a longer trailer life.
Double tapered beam at rear for proper axle loading
Double tapered beam at rear for proper axle loading

This design optimizes load distribution between the axles and extends suspension life.

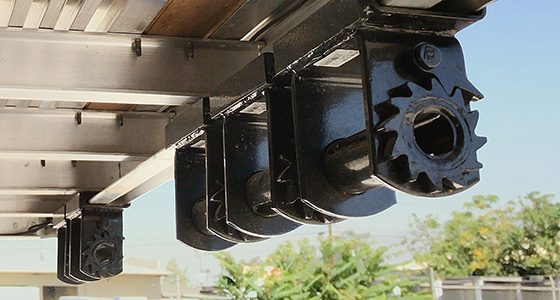

Integral winch track
Integral winch track

The integral winch track is extruded into the aluminum side rails. It features a 6,500 lb working load limit rating.

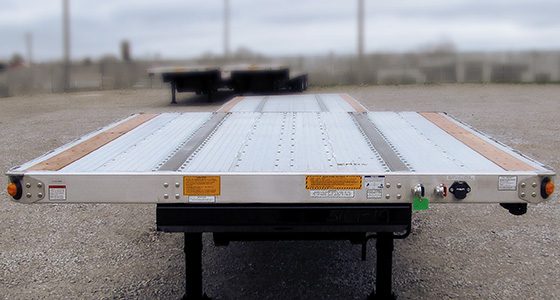

Aluminum front rail
Aluminum front rail

Designed to lower tare weight, this high strength aluminum front rail provides added protection, improves durability and reduces maintenance expenses.
Front stainless steel corners
Front stainless steel corners

Stainless steel corners and top plates protect against impact damage and provide additional strength and durability, reducing cost of ownership.
Microencapsulated adhesive on all screws
Microencapsulated adhesive on all screws

Seals and locks threaded fasteners, creating better and stronger connections. Sealed threads are vibration-proof, protected against corrosion, and are resistant to fuel, oil and grease, reducing maintenance costs.

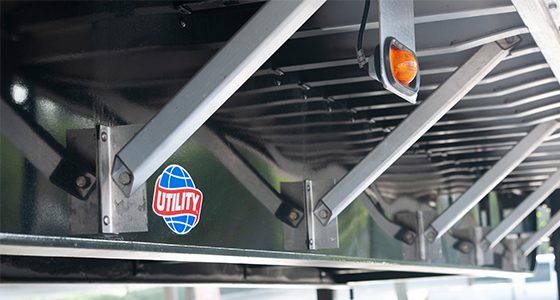

Heavy-duty aluminum outrigger attachments
Heavy-duty aluminum outrigger attachments

Five tube-shaped outriggers located on each side of the flatbed are connected to the crossmembers, providing stability and helping distribute the load to the main beams.
High-quality paint process
High-quality paint process

The main beams are shot blasted to bare metal prior to painting and then coated with a two-part primer and two-part urethane top coat on the exterior surfaces. A rust preventative coating is applied to the interior surfaces of the beams for lower maintenance cost.
100% soldered electrical wiring system
100% soldered electrical wiring system

The sealed main harness features 100% soldered internal connectors that prevent corrosive deicing chemicals from traveling through connections into the wiring.

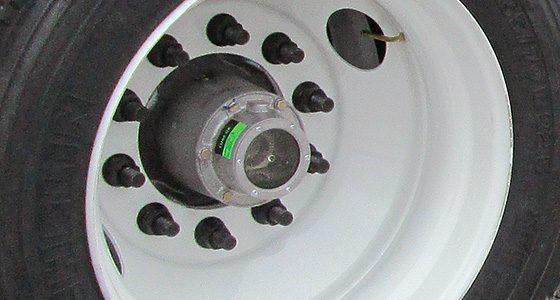

ConMet aluminum hubs
ConMet aluminum hubs

Provides superior weight savings without a sacrifice to durability, performance and strength.
Utility I.C.C. bumper
Utility I.C.C. bumper

Meets DOT and Transport Canada safety requirements.

Available Options

Front deck length options
Front deck length options

Available as an option on a Drop Deck, this option provides for varied 5th wheel locations.
Adjustable load securement system (ALSS)
Adjustable load securement system (ALSS)

Aluminum side rails feature the integral ALSS tie-down track and sliding winch track. Movable J-hook tie-down plates provide on-the-deck load securement and can be stored on an optional formed channel attached to the main beam.
Factory-installed D.O.T. and non-D.O.T. rated bulkheads
Factory-installed D.O.T. and non-D.O.T. rated bulkheads

Choose from our D.O.T. rated all-aluminum or steel bulkheads. Non-D.O.T. rated bulkheads are available in weld-on or bolt-on designs.
Custom color paints
Custom color paints

A variety of paint colors for your flatbed are available.
Tool boxes
Tool boxes

Most manufacturers and styles are available and will be factory-installed.
Sliding winches
Sliding winches

Integrated into the extruded aluminum side rails on both sides of the flatbed, sliding winches are designed to increase load securement versatility.
Tire inflation systems
Tire inflation systems

Choose one of our recommended systems to maintain optimum tire pressure in order to increase fuel economy, improve safety and maximize tire life.
Extra lights for increased visibility
Extra lights for increased visibility

Increase visibility and improve safety by putting lights exactly where you want them.
