Drop Deck - Utility Trailer

Standard Features

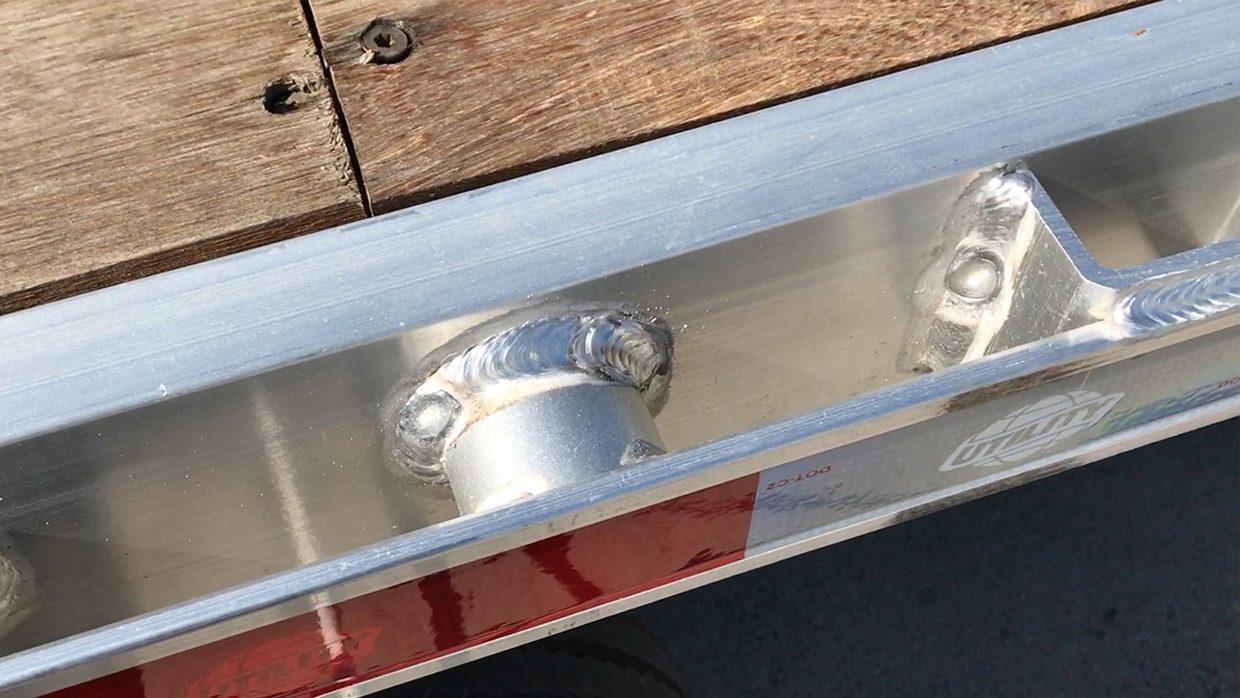

Heavy-duty pipe spools

The aluminum side rail has an integral winch track and heavy-duty pipe spools. The pipe spools are engineered to a 6,500 lb working load limit rating.

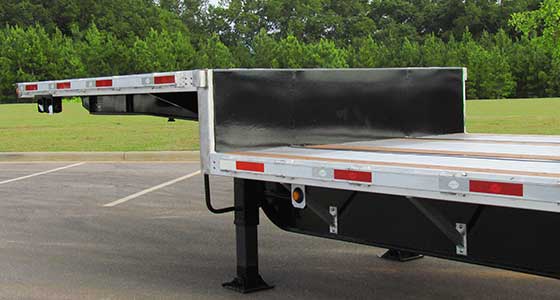

Drop Deck solutions for heavy and awkward loads

Available in all-steel or aluminum/steel combo designs, our Drop Deck trailers deliver options to deliver superior strength.

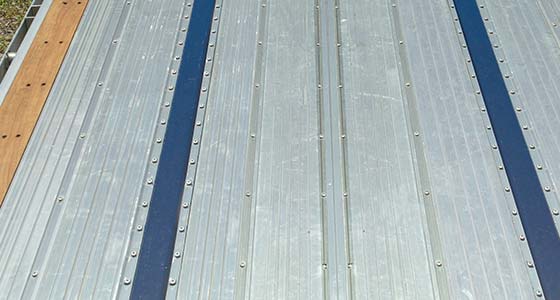

Hat-shaped top flange

Attached to the extruded aluminum floor, the 80,000 psi high strength steel hat-shaped top flange provides additional lateral stability to the trailer.

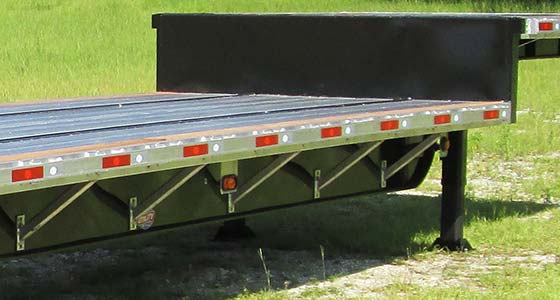

Heavy-duty aluminum outrigger attachments

Five tube-shaped outriggers located on each side of the flatbed are connected to the crossmembers, providing stability and helping distribute the load to the main beams.

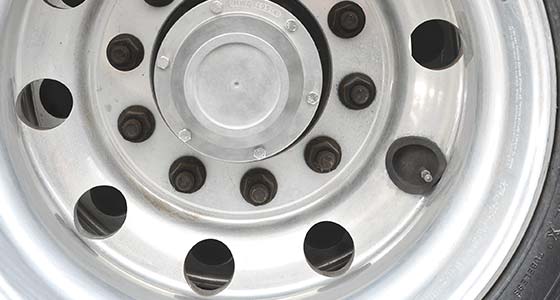

ConMet Preset Plus<sup>®</sup> premium wheel end system

ConMet Preset Plus^® premium wheel end system

ConMet Preset Plus includes aluminum hub, seals, bearings, spacer and spindle nut. This premium system also comes with an 8-year warranty.

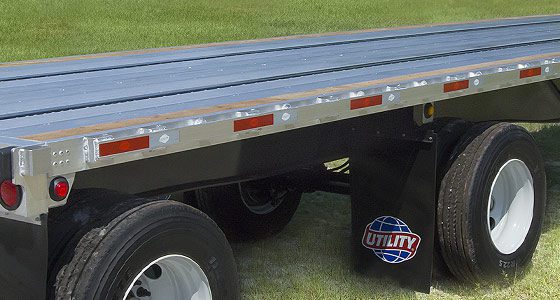

Double tapered beam at rear for proper axle loading

This design optimizes load distribution between the axles and extends suspension life.

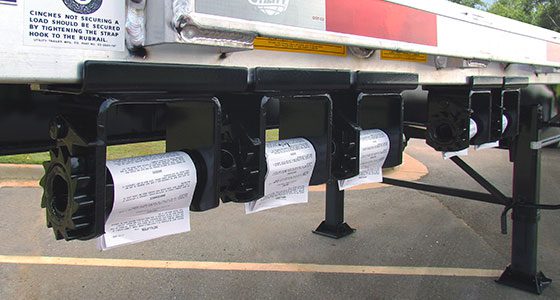

Integral winch track

The integral winch track is extruded into the aluminum side rails. It features a 5,000 lb working load limit rating.

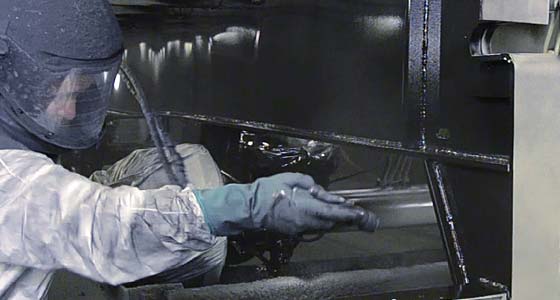

High-quality paint process

The main beams are shot blasted to bare metal prior to painting and then coated with a two-part primer and two-part urethane top coat on the exterior surfaces. A rust preventative coating is applied to the interior surfaces of the beams for lower maintenance cost.

100% soldered main harness

The sealed main harness features 100% soldered internal connectors to prevent corrosive de-icing chemicals from traveling through connections into the wiring.

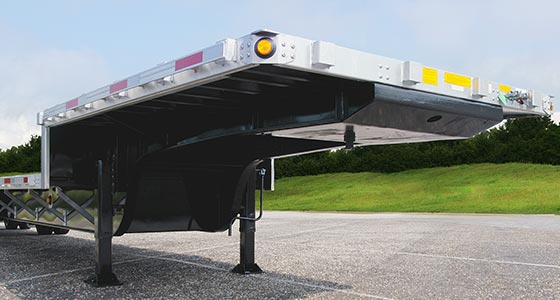

Aluminum front rail

Designed to lower tare weight, this high-strength aluminum front rail provides added protection, improves durability and reduces maintenance expenses.

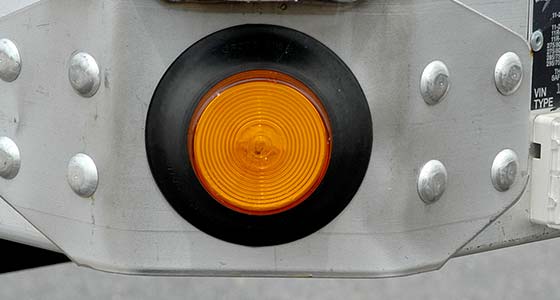

Front stainless steel corners

Stainless steel corners and top plates protect against impact damage and provide additional strength and durability, reducing cost of ownership.

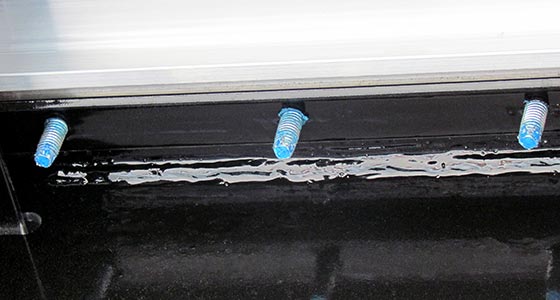

Microencapsulated adhesive on all screws

Seals and locks threaded fasteners, creating better and stronger connections. Sealed threads are vibration-proof, protected against corrosion, and are resistant to fuel, oil and grease, reducing maintenance costs.

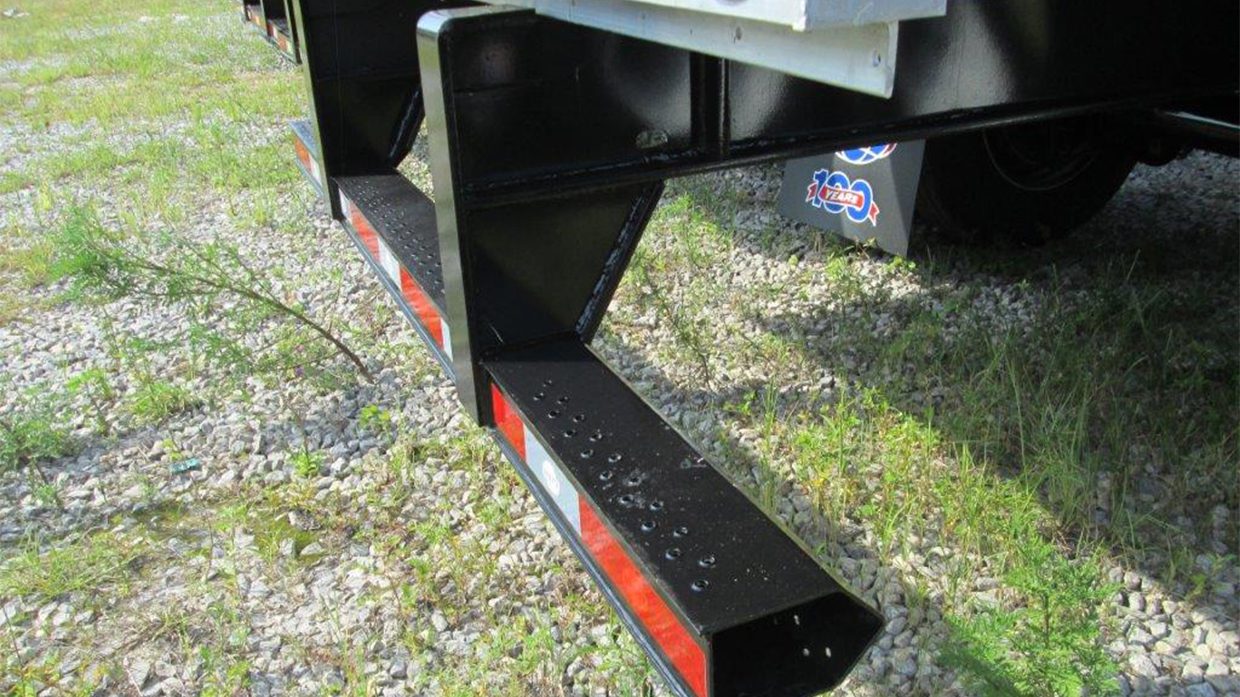

Utility I.C.C. bumper

Meets D.O.T. and Transport Canada safety requirements. The 7" deep horizontal bumper provides superior strength and protection.

Available Options

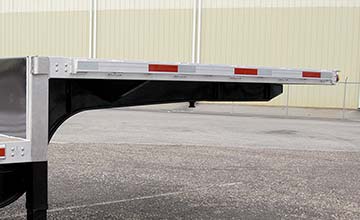

Front deck length options

Available as an option on a Drop Deck, this option provides for varied 5th wheel locations.

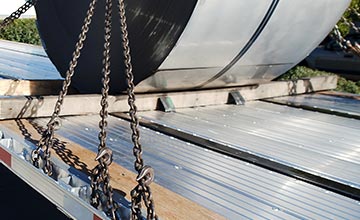

Multiple steel coil packages

Coil packages from 47,000 lb to 57,000 lb are available to match your specific requirements.

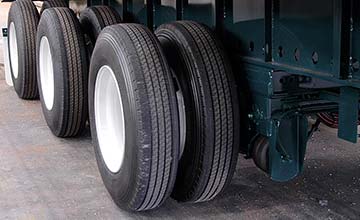

Tri-axle suspension systems

Tri-axle suspension options with 49", 60" and 72" spread axles provide higher payload capacity.

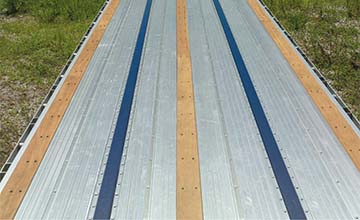

Additional nailing strip

A third nailing strip is available for increased cargo securement versatility.

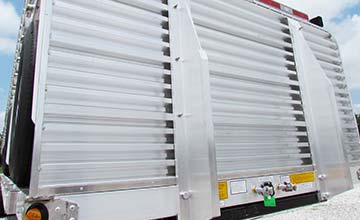

Factory-installed D.O.T. and non-D.O.T. rated bulkheads

Choose from our D.O.T. rated all-aluminum or steel bulkheads. Non-D.O.T. rated bulkheads are available in weld-on or bolt-on designs.

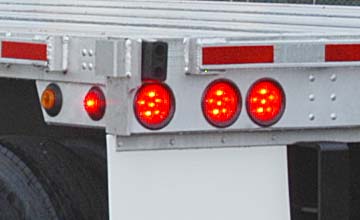

Extra lights for increased visibility

Increase visibility and improve safety by putting lights exactly where you want them.
